Simulation module settings 更多...

类
class	PrintInfoItem
	Class stores a single output item of an OuputID 更多...

class	PrintInfo
	Outputs of one variable, which may contain one or more `PrintInfoItem` 更多...

class	InputArgs
	Parse the input arguments of SEIMS. 更多...

struct	ModelClass
	Module basic description 更多...

struct	Information
	Module development information class 更多...

struct	baseParameter
	Basic model parameter information 更多...

struct	Parameter
	Model parameter information class 更多...

struct	InputVariable
	Input variable information class 更多...

struct	OutputVariable
	Output variable information class 更多...

struct	InOutputVariable
	Input and output variable information class 更多...

class	MetadataInfo
	Metadata information of module 更多...

class	ModuleFactory
	Linking user-defined modules to create the modeling workflow. 更多...

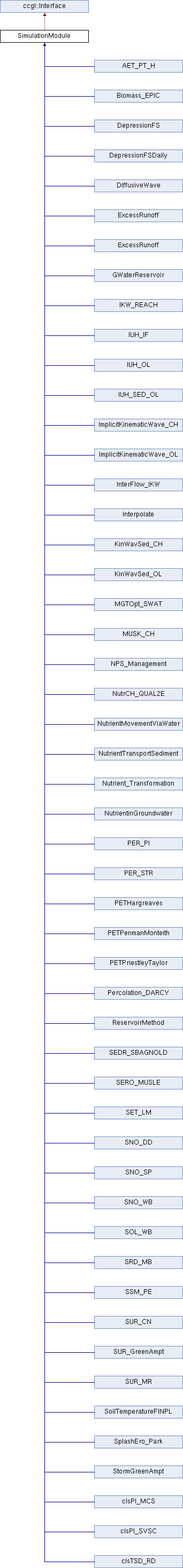

class	SimulationModule
	Base module for all simulation modules in SEIMS 更多...

枚举
enum	AggregationType { AT_Unknown = 0 , AT_Sum = 1 , AT_Average = 2 , AT_Minimum = 3 , AT_Maximum = 4 , AT_SpecificCells = 5 , AT_TimeSeries = 6 }
	Aggregation type for OUTPUT 更多...

enum	dimensionTypes { DT_Unknown = -1 , DT_Single = 0 , DT_SingleInt = 1 , DT_Array1DDateValue = 2 , DT_Array1D = 3 , DT_Array1DInt = 4 , DT_Array2D = 5 , DT_Array2DInt = 6 , DT_Raster1D = 7 , DT_Raster1DInt = 8 , DT_Raster2D = 9 , DT_Raster2DInt = 10 , DT_Scenario = 11 , DT_Reach = 12 , DT_Subbasin = 13 }
	enum of dimension data types 更多...

enum	transferTypes { TF_None = 0 , TF_SingleValue = 1 , TF_OneArray1D = 2 }
	Float values be transferred across subbasins for MPI version 更多...

enum	TimeStepType { TIMESTEP_HILLSLOPE , TIMESTEP_CHANNEL , TIMESTEP_SIMULATION }
	Time step types. 更多...

详细描述

Simulation module settings

类说明

◆ PrintInfoItem

class PrintInfoItem

Class stores a single output item of an OuputID

Public 成员函数
	PrintInfoItem (int scenario_id=0, int calibration_id=-1)
	Constructor

	~PrintInfoItem ()
	Destructor

void	add1DTimeSeriesResult (time_t, int n, const FLTPT *data)
	Add 1D time series data result to TimeSeriesDataForSubbasin

void	add1DRasterTimeSeriesResult (time_t, int n, const float *data)
	Add 1D time series data result to TimeSeriesDataForRaster

time_t	getStartTime ()
	get start time time_t

void	setStartTime (const time_t &st)
	set start time time_t

time_t	getEndTime ()
	Get end time time_t

void	setEndTime (const time_t &st)
	set end time time_t

void	Flush (const string &projectPath, MongoGridFs gfs, IntRaster templateRaster, const string &header)
	create "output" folder to store all results

bool	IsDateInRange (time_t dt)
	Determine if the given date is within the date range for this item

void	AggregateData (int numrows, FLTPT **data, AggregationType type, FLTPT NoDataValue)
	Aggregate the 2D data from the given data parameter using the given method type. 更多...

void	AggregateData (time_t time, int numrows, FLTPT *data)
	Aggregate the 1D data from the given data parameter using the given method type

void	AggregateData2D (time_t time, int nRows, int nCols, FLTPT **data)
	Aggregate the 2D raster data from the given data parameter using the given method type

void	setAggregationType (const AggregationType type)
	Set the Aggregation type

AggregationType	getAggregationType ()
	Get the Aggregation type

静态 Public 成员函数
static AggregationType	MatchAggregationType (const string &type)
	convert the given string into a matching Aggregation type

Public 属性
FLTPT **	m_1DDataWithRowCol
	Aggregated data, the second dimension contains: row, col, value

int	m_nRows
	rows number, i.e., number of valid cells

FLTPT *	m_1DData
	For 1D raster/array data

int	m_nLayers
	number of layers of raster data, greater or equal than 1

FLTPT **	m_2DData
	For 2D raster/array data

map< time_t, FLTPT >	TimeSeriesData
	For time series data of a single subbasin, DT_Single

map< time_t, FLTPT * >	TimeSeriesDataForSubbasin
	For time series data of a single subbasin, DT_Raster1D or DT_Array1D

int	TimeSeriesDataForSubbasinCount
	Count of TimeSeriesDataForSubbasin

map< time_t, float * >	TimeSeriesDataForRaster
	For time series data of DT_Raster1D(output some .tif files. Distinct from TimeSeriesDataForSubbasin,which output some .txt files)

int	TimeSeriesDataForRasterCount
	Count of TimeSeriesDataForRaster

int	SiteID
	used only by PET_TS??? The site id 更多...

int	SiteIndex
	The subbasin id

int	SubbasinID
	The subbasin index

time_t	m_startTime
	Start time time_t

time_t	m_endTime
	End time time_t

string	Suffix
	file suffix, e.g., txt, tif, asc, etc.

string	Corename
	output filename without suffix, core name without subbasin ID

string	Filename
	output filename without suffix, and contain subbasin ID as prefix for MPI version

string	AggType
	Aggregation type string

成员函数说明

◆ AggregateData()

void PrintInfoItem::AggregateData	(	int	numrows,
		FLTPT **	data,
		AggregationType	type,
		FLTPT	NoDataValue
	)

Aggregate the 2D data from the given data parameter using the given method type.

However this **data restrict to 3 layers, i.e., Row, Col, Value NO NEED TO USE?

类成员变量说明

◆ SiteID

int PrintInfoItem::SiteID

used only by PET_TS??? The site id

The site index in output array1D variable

◆ PrintInfo

class PrintInfo

Outputs of one variable, which may contain one or more PrintInfoItem

参见: PrintInfoItem

Public 成员函数
	PrintInfo (int scenario_id=0, int calibration_id=-1)
	Constructor, initialize an empty instance

	~PrintInfo ()
	Destructor

int	ItemCount () const
	Get the number of output items

void	getSubbasinSelected (int count, int *subbasins)
	Get all the subbasin IDs (in float array) selected for this outputID

void	setOutputID (string id)
	Set the OutputID for this object

string	getOutputID () const
	Get the OutputId for this object

string	getOutputTimeSeriesHeader ()
	Get Header string (all field names) for current OutputID. TODO, how to make it more flexible? By LJ.

void	setInterval (int interval)
	Set the interval

int	getInterval ()
	Get the interval

void	setIntervalUnits (string &units)
	Set the interval units

string	getIntervalUnits () const
	Get the interval units

void	AddPrintItem (time_t start, time_t end, const string &file, const string &sufi)
	Add an output item with the given start time, end time and file name

void	AddPrintItem (string &type, time_t start, time_t end, const string &file, const string &sufi, int subbasinID=0)
	Add an output item with the given aggregate type, start time, end time, file name and subbasin ID

void	AddPrintItem (time_t start, time_t end, const string &file, string sitename, const string &sufi, bool isSubbasin)
	Add an output item with the given start time (string), end time (string) and file name, Overloaded method

PrintInfoItem *	getPrintInfoItem (int index)
	Get a reference to the output item located at the given index position

Public 属性
int	m_scenarioID
	Scenario ID

int	m_calibrationID
	Calibration ID

int	m_Interval
	Time interval of output

string	m_IntervalUnits
	Unit of time interval, which can only be DAY, HR, SEC.

int	m_moduleIndex
	Module index of the OutputID

string	m_OutputID
	Unique Output ID, which should be one of "VAR_" defined in text.h and Output of any modules.

ParamInfo< FLTPT > *	m_param
	The calibration parameters corresponding to the output id, if stated.

vector< PrintInfoItem * >	m_PrintItems
	For one OutputID, there may be several output items, e.g., different time period, different subbasin ID. etc.

◆ InputArgs

class InputArgs

Parse the input arguments of SEIMS.

类 InputArgs 继承关系图:

Public 成员函数
	InputArgs (const string &model_path, const string &model_cfgname, int thread_num, FlowDirMethod fdir_mtd, LayeringMethod lyr_mtd, const string &host, uint16_t port, int scenario_id, int calibration_id, int subbasin_id, GroupMethod grp_mtd, ScheduleMethod skd_mtd, int time_slices, const string &log_level, bool mpi_version=false)
	Constructor by detailed parameters 更多...

静态 Public 成员函数
static InputArgs *	Init (int argc, const char **argv, bool mpi_version=false)
	Initializer. 更多...

Public 属性
string	model_path
	full path of model folder which contains all inputs and outputs of all models

string	model_cfgname
	config name of specific model, the default is "", it corresponds to a subfolder

string	model_name
	model_name

string	output_scene
	output identifier concatenated with scenario_id, calibration_id, lyr_mtd, fdir_mtd

string	output_path
	full path of model outputs

int	thread_num
	thread number for OpenMP

FlowDirMethod	fdir_mtd
	Flow direction method for flow routing, default is 0 (D8)

LayeringMethod	lyr_mtd
	Layering method for sequencing computing, default is 0

string	host
	Host IP address or name of MongoDB database

uint16_t	port
	port of MongoDB, 27017 is default

int	scenario_id
	scenario ID defined in Database, -1 for no use.

int	calibration_id
	calibration ID defined in Database (PARAMETERS), -1 for no use.

int	subbasin_id
	Subbasin ID, which will be executed, 0 for whole basin, 9999 for field-version

GroupMethod	grp_mtd
	Group method for parallel task scheduling, default is 0

ScheduleMethod	skd_mtd
	Parallel task scheduling strategy at subbasin level by MPI

int	time_slices
	Time slices for Temporal-Spatial discretization method, Wang et al. (2013). Unfinished!

string	log_level
	logging level, i.e., Trace, Debug, Info (default), Warning, Error, and Fatal

bool	mpi_version
	is running the MPI version?

构造及析构函数说明

◆ InputArgs()

InputArgs::InputArgs	(	const string &	model_path,
		const string &	model_cfgname,
		int	thread_num,
		FlowDirMethod	fdir_mtd,
		LayeringMethod	lyr_mtd,
		const string &	host,
		uint16_t	port,
		int	scenario_id,
		int	calibration_id,
		int	subbasin_id,
		GroupMethod	grp_mtd,
		ScheduleMethod	skd_mtd,
		int	time_slices,
		const string &	log_level,
		bool	mpi_version = `false`
	)

Constructor by detailed parameters

参数

[in]	model_path	path of the configuration of the Model
[in]	model_cfgname	config name of specific model, the default is "", it corresponds to a subfolder
[in]	thread_num	thread or processor number, which must be greater or equal than 1 (default)
[in]	fdir_mtd	can be 0, 1, and 2, which means D8 (default), Dinf, and MFDmd, respectively
[in]	lyr_mtd	can be 0 and 1, which means UP_DOWN (default) and DOWN_UP, respectively
[in]	host	the address of MongoDB database, by default, MongoDB IP is 127.0.0.1 (i.e., localhost)
[in]	port	port number, default is 27017
[in]	scenario_id	the ID of BMPs Scenario which has been defined in BMPs database
[in]	calibration_id	the ID of Calibration which has been defined in PARAMETERS table
[in]	subbasin_id	the subbasin that will be executed, default is 0 which means the whole watershed
[in]	grp_mtd	can be 0 and 1, which means KMETIS (default) and PMETIS, respectively
[in]	skd_mtd	(TESTED) can be 0 and 1, which means SPATIAL (default) and TEMPOROSPATIAL, respectively
[in]	time_slices	(TESTED) should be greater than 1, required when <skd_mtd> is 1
[in]	log_level	logging level, the default is Info
[in]	mpi_version	Optional, is running the MPI version?

成员函数说明

◆ Init()

static InputArgs * InputArgs::Init	(	int	argc,
		const char **	argv,
		bool	mpi_version = `false`
	)

static

Initializer.

参数

[in]	argc	Number of arguments
[in]	argv	char* Arguments
[in]	mpi_version	Optional, is running the MPI version?

◆ ModelClass

struct ModelClass

Module basic description

◆ Information

struct Information

Module development information class

Public 属性
string	Id
	Module ID

string	Name
	Module Name

string	Description
	Module Description

string	Version
	Module Version

string	Author
	Author

string	EMail
	Email

string	Website
	Website

string	Helpfile
	Helpfile

◆ baseParameter

struct baseParameter

Basic model parameter information

类 baseParameter 继承关系图:

Public 属性
string	Name
	Name

string	Units
	Units

string	Description
	Description

dimensionTypes	Dimension
	Data dimension type

◆ Parameter

struct Parameter

Model parameter information class

类 Parameter 继承关系图:

Public 属性
string	Source
	Source type

Public 属性继承自 baseParameter
string	Name
	Name

string	Units
	Units

string	Description
	Description

dimensionTypes	Dimension
	Data dimension type

◆ InputVariable

struct InputVariable

Input variable information class

类 InputVariable 继承关系图:

额外继承的成员函数
Public 属性继承自 Parameter
string	Source
	Source type

Public 属性继承自 baseParameter
string	Name
	Name

string	Units
	Units

string	Description
	Description

dimensionTypes	Dimension
	Data dimension type

◆ OutputVariable

struct OutputVariable

Output variable information class

类 OutputVariable 继承关系图:

额外继承的成员函数
Public 属性继承自 baseParameter
string	Name
	Name

string	Units
	Units

string	Description
	Description

dimensionTypes	Dimension
	Data dimension type

◆ InOutputVariable

struct InOutputVariable

Input and output variable information class

类 InOutputVariable 继承关系图:

额外继承的成员函数
Public 属性继承自 Parameter
string	Source
	Source type

Public 属性继承自 baseParameter
string	Name
	Name

string	Units
	Units

string	Description
	Description

dimensionTypes	Dimension
	Data dimension type

◆ MetadataInfo

class MetadataInfo

Metadata information of module

类 MetadataInfo 继承关系图:

◆ ModuleFactory

class ModuleFactory

Linking user-defined modules to create the modeling workflow.

类 ModuleFactory 继承关系图:

Public 成员函数
	ModuleFactory (string model_name, vector< string > &moduleIDs, map< string, SEIMSModuleSetting * > &moduleSettings, vector< DLLINSTANCE > &dllHandles, map< string, InstanceFunction > &instanceFuncs, map< string, MetadataFunction > &metadataFuncs, map< string, vector< ParamInfo< FLTPT > * > > &moduleParams, map< string, vector< ParamInfo< int > * > > &moduleParamsInt, map< string, vector< ParamInfo< FLTPT > * > > &moduleInputs, map< string, vector< ParamInfo< int > * > > &moduleInputsInt, map< string, vector< ParamInfo< FLTPT > * > > &moduleOutputs, map< string, vector< ParamInfo< int > * > > &moduleOutputsInt, map< string, vector< ParamInfo< FLTPT > * > > &moduleInOutputs, map< string, vector< ParamInfo< int > * > > &moduleInOutputsInt, vector< ParamInfo< FLTPT > * > &tfValueInputs, vector< ParamInfo< int > * > &tfValueInputsInt, int mpi_rank=0, int mpi_size=-1)
	Constructor

	~ModuleFactory ()
	Destructor

void	CreateModuleList (vector< SimulationModule * > &modules, int nthread=1)
	Create a set of objects and set up the relationship among them. Return time-consuming.

void	GetValueFromDependencyModule (int iModule, vector< SimulationModule * > &modules)
	Get value from dependency modules

bool	FindOutputParameter (string &outputID, int &iModule, ParamInfo< FLTPT > *&paraInfo)
	Find outputID parameter's module. Return Module index iModule and its ParamInfo<FLTPT>

string	GetModuleID (int i) const
	Get Module ID by index

vector< string > &	GetModuleIDs ()
	Get unique module IDs

map< string, SEIMSModuleSetting * > &	GetModuleSettings ()
	Get map of module settings

map< string, vector< ParamInfo< FLTPT > * > > &	GetModuleParams ()
	Get Parameters of modules

map< string, vector< ParamInfo< int > * > > &	GetModuleParamsInt ()
	Get integer parameters of modules

map< string, vector< ParamInfo< FLTPT > * > > &	GetModuleInputs ()
	Get Input of modules, from other modules

map< string, vector< ParamInfo< int > * > > &	GetModuleInputsInt ()
	Get integer input of modules, from other modules

map< string, vector< ParamInfo< FLTPT > * > > &	GetModuleOutputs ()
	Get Output of modules, out from current module

map< string, vector< ParamInfo< int > * > > &	GetModuleOutputsInt ()
	Get integer Output of modules, out from current module

map< string, vector< ParamInfo< FLTPT > * > > &	GetModuleInOutputs ()
	Get InOutput of modules, in and out from current module

map< string, vector< ParamInfo< int > * > > &	GetModuleInOutputsInt ()
	Get integer InOutput of modules, in and out from current module

vector< ParamInfo< FLTPT > * > &	GetTransferredInputs ()
	Get transferred single value inputs across subbasins

vector< ParamInfo< int > * > &	GetTransferredInputsInt ()
	Get transferred single integer value inputs across subbasins

int	GetTransferredInputsCount ()
	Get the count of transferred single value inputs

int	GetTransferredInputsIntCount ()
	Get the count of transferred single integer value inputs

SimulationModule *	GetInstance (const string &moduleID)
	Get module instance by moduleID

静态 Public 成员函数
static ModuleFactory *	Init (const string &module_path, InputArgs *input_args, int mpi_rank=0, int mpi_size=-1)
	Initialization for exception-safe constructor

static bool	LoadSettingsFromFile (const char *filename, vector< vector< string > > &settings)
	Load modules setting from file

static bool	ReadConfigFile (const char configFileName, vector< string > &moduleIDs, map< string, SEIMSModuleSetting > &moduleSettings)
	Read configuration file 更多...

static bool	LoadParseLibrary (const string &module_path, vector< string > &moduleIDs, map< string, SEIMSModuleSetting * > &moduleSettings, vector< DLLINSTANCE > &dllHandles, map< string, InstanceFunction > &instanceFuncs, map< string, MetadataFunction > &metadataFuncs, map< string, vector< ParamInfo< FLTPT > * > > &moduleParams, map< string, vector< ParamInfo< int > * > > &moduleParamsInt, map< string, vector< ParamInfo< FLTPT > * > > &moduleInputs, map< string, vector< ParamInfo< int > * > > &moduleInputsInt, map< string, vector< ParamInfo< FLTPT > * > > &moduleOutputs, map< string, vector< ParamInfo< int > * > > &moduleOutputsInt, map< string, vector< ParamInfo< FLTPT > * > > &moduleInOutputs, map< string, vector< ParamInfo< int > * > > &moduleInOutputsInt, vector< ParamInfo< FLTPT > * > &tfValueInputs, vector< ParamInfo< int > * > &tfValueInputsInt)
	Load and parse module libraries 更多...

static void	ReadDLL (const string &module_path, const string &id, const string &dllID, vector< DLLINSTANCE > &dllHandles, map< string, InstanceFunction > &instanceFuncs, map< string, MetadataFunction > &metadataFuncs)
	Load function pointers from .DLL or .so

static dimensionTypes	MatchType (const string &strType)
	Match data type, e.g., 1D array

static transferTypes	MatchTransferType (const string &tfType)
	Match data transfer type, e.g., TF_SingleValue

static bool	IsConstantInputFromName (const string &name)
	Is constant input?

static void	ReadParameterSetting (string &moduleID, TiXmlDocument &doc, SEIMSModuleSetting setting, map< string, vector< ParamInfo< FLTPT > > > &moduleParams, map< string, vector< ParamInfo< int > * > > &moduleParamsInt)
	Read module's parameters setting from XML string

static void	ReadIOSetting (string &moduleID, TiXmlDocument &doc, SEIMSModuleSetting setting, const string &header, const string &title, map< string, vector< ParamInfo< FLTPT > > > &vars, map< string, vector< ParamInfo< int > * > > &varsInt)
	Read module's input, output, and in/output setting from XML string

static string	GetComparableName (string &paraName)
	Get comparable name after underscore if necessary, e.g., T_PET => use PET

static ParamInfo< FLTPT > *	FindDependentParam (ParamInfo< FLTPT > paramInfo, vector< string > &moduleIDs, map< string, vector< ParamInfo< FLTPT > > > &moduleOutputs)
	Find dependent parameters

static ParamInfo< int > *	FindDependentParam (ParamInfo< int > paramInfo, vector< string > &moduleIDs, map< string, vector< ParamInfo< int > > > &moduleOutputs)
	Find dependent parameters

Public 属性
int	m_mpi_rank
	Rank ID for MPI, starts from 0 to mpi_size_ - 1

int	m_mpi_size
	Rank size for MPI

成员函数说明

◆ LoadParseLibrary()

static bool ModuleFactory::LoadParseLibrary	(	const string &	module_path,
		vector< string > &	moduleIDs,
		map< string, SEIMSModuleSetting * > &	moduleSettings,
		vector< DLLINSTANCE > &	dllHandles,
		map< string, InstanceFunction > &	instanceFuncs,
		map< string, MetadataFunction > &	metadataFuncs,
		map< string, vector< ParamInfo< FLTPT > * > > &	moduleParams,
		map< string, vector< ParamInfo< int > * > > &	moduleParamsInt,
		map< string, vector< ParamInfo< FLTPT > * > > &	moduleInputs,
		map< string, vector< ParamInfo< int > * > > &	moduleInputsInt,
		map< string, vector< ParamInfo< FLTPT > * > > &	moduleOutputs,
		map< string, vector< ParamInfo< int > * > > &	moduleOutputsInt,
		map< string, vector< ParamInfo< FLTPT > * > > &	moduleInOutputs,
		map< string, vector< ParamInfo< int > * > > &	moduleInOutputsInt,
		vector< ParamInfo< FLTPT > * > &	tfValueInputs,
		vector< ParamInfo< int > * > &	tfValueInputsInt
	)

static

Load and parse module libraries

参数

module_path
moduleIDs
moduleSettings
dllHandles
instanceFuncs
metadataFuncs
moduleParams
moduleParamsInt
moduleInputs
moduleInputsInt
moduleOutputs
moduleOutputsInt
moduleInOutputs
tfValueInputs

返回: True if succeed, else throw exception and return false.

◆ ReadConfigFile()

static bool ModuleFactory::ReadConfigFile	(	const char *	configFileName,
		vector< string > &	moduleIDs,
		map< string, SEIMSModuleSetting * > &	moduleSettings
	)

static

Read configuration file

参数

[in]	configFileName	Configuration full file path
[out]	moduleIDs	Unique module IDs (name)
[out]	moduleSettings	Map of SEIMSModuleSetting

返回: True if succeed.

◆ SimulationModule

class SimulationModule

Base module for all simulation modules in SEIMS

类 SimulationModule 继承关系图:

Public 成员函数
	SimulationModule ()
	Constructor

virtual int	Execute ()
	Execute the simulation. Return 0 for success.

virtual void	SetDate (time_t t, int year_idx)
	Set date time, as well as the sequence number of the entire simulation. Added by LJ for statistics convenient.

virtual void	SetTheadNumber (const int thread_num)
	Set thread number for OpenMP

virtual void	SetClimateDataType (int data_type)
	Set climate data type, P, M, PET etc.

virtual void	SetValue (const char *key, int value)
	Set data, DT_Single, integer

virtual void	SetValue (const char *key, FLTPT value)
	Set data, DT_Single, float point number (float or double)

virtual void	SetValueByIndex (const char *key, int index, int value)
	Set single value to array1D by index, used in MPI version for passing values of subbasins, integer

virtual void	SetValueByIndex (const char *key, int index, FLTPT value)
	Set single value to array1D by index, used in MPI version for passing values of subbasins, float

virtual void	Set1DData (const char key, int n, int data)
	Set 1D data, by default, DT_Raster1D, integer

virtual void	Set1DData (const char key, int n, FLTPT data)
	Set 1D data, by default, DT_Raster1D, float

virtual void	Set2DData (const char key, int nrows, int ncols, int *data)
	Set 2D data, by default, DT_Raster2D, integer

virtual void	Set2DData (const char key, int nrows, int ncols, FLTPT *data)
	Set 2D data, by default, DT_Raster2D, float

virtual void	GetValue (const char key, int value)
	Get value, DT_Single, integer

virtual void	GetValue (const char key, FLTPT value)
	Get value, DT_Single, float

virtual void	Get1DData (const char key, int n, int **data)
	Get 1D data, by default, DT_Raster1D, integer

virtual void	Get1DData (const char key, int n, FLTPT **data)
	Get 1D data, by default, DT_Raster1D, float

virtual void	Get2DData (const char key, int nrows, int ncols, int **data)
	Get 2D data, by default, DT_Raster2D, integer

virtual void	Get2DData (const char key, int nrows, int ncols, FLTPT **data)
	Get 2D data, by default, DT_Raster2D, float

virtual void	SetScenario (Scenario *sce)
	Set pointer of Scenario class which contains all BMP information. Added by LJ, 2016-6-14

virtual void	SetReaches (clsReaches *rches)
	Set pointer of clsReaches class which contains all reaches information. Added by LJ, 2016-7-2

virtual void	SetSubbasins (clsSubbasins *subbsns)
	Set pointer of clsSubbasins class which contains all subbasins information. Added by LJ, 2016-7-28

virtual bool	CheckInputData ()
	Check the input data. 更多...

virtual bool	CheckInputSize (const char module_id, const char key, int nrows, int &m_nrows)
	Check data length of the first dimension (i.e., nRows) of the input array-based data 更多...

virtual bool	CheckInputSize2D (const char module_id, const char key, int nrows, int ncols, int &m_nrows, int &m_ncols)
	Check data length of the two dimensions (i.e., nRows and nCols) of the input array-based data 更多...

virtual void	InitialOutputs ()
	Initialize output variables. 更多...

virtual void	InitialIntermediates ()
	Initialize intermediate parameters for reducing computing amount. 更多...

virtual TimeStepType	GetTimeStepType ()
	Get time step type, default is hillslope process. 更多...

virtual void	ResetSubTimeStep ()
	Reset subtime step

bool	IsInputsSetDone ()
	Whether the inputs (i.e., inputs derived from other modules) have been set.

void	SetInputsDone (const bool set_done)
	Change the status of setting inputs parameters

void	SetReCalIntermediates (const bool recal)
	set whether intermediate parameters need to recalculated

Protected 属性
time_t	m_date
	date time

int	m_yearIdx
	index of current year of simulation, e.g., the simulation period from 2010 to 2015, m_yearIdx is 2 when simulate 2012.

int	m_year
	year

int	m_month
	month since January - [1,12]

int	m_day
	day of the month - [1,31]

int	m_dayOfYear
	day of year - [1, 366]

int	m_tsCounter
	sub-timestep counter

bool	m_inputsSetDone
	Whether the inputs parameters (i.e., parameters derived from other modules) have been set.

bool	m_reCalIntermediates
	need to recalculate intermediate parameters?

成员函数说明

◆ CheckInputData()

virtual bool SimulationModule::CheckInputData ( void )

virtual

Check the input data.

Make sure all the input data is available.

   This function is optional to be overridden.

返回: bool The validity of the input data.

被 KinWavSed_CH, IKW_REACH, Interpolate, AET_PT_H, Biomass_EPIC, IUH_SED_OL, SEDR_SBAGNOLD, SERO_MUSLE, DiffusiveWave, DepressionFS, clsPI_MCS, StormGreenAmpt, DepressionFSDaily, ReservoirMethod, IUH_OL, MUSK_CH, PER_PI, PER_STR, PETHargreaves, PETPenmanMonteith, PETPriestleyTaylor, SET_LM, SNO_SP, SOL_WB, SoilTemperatureFINPL, SUR_MR, NPS_Management, MGTOpt_SWAT, Nutrient_Transformation, NutrCH_QUAL2E, NutrientinGroundwater, NutrientMovementViaWater, NutrientTransportSediment, KinWavSed_OL, SplashEro_Park, InterFlow_IKW, ImplicitKinematicWave_OL, IUH_IF, SNO_DD, SNO_WB, SRD_MB, SSM_PE, SUR_CN, SUR_GreenAmpt , 以及 ImplicitKinematicWave_CH 重载.

◆ CheckInputSize()

virtual bool SimulationModule::CheckInputSize	(	const char *	module_id,
		const char *	key,
		int	nrows,
		int &	m_nrows
	)

virtual

Check data length of the first dimension (i.e., nRows) of the input array-based data

参数

[in]	module_id	Module ID used to print exception message
[in]	key	the key to identify the requested data
[in]	nrows	size of the first dimension
[out]	m_nrows	the expected size, if m_nrows less or equal to 0, then m_nrows = mrows

◆ CheckInputSize2D()

virtual bool SimulationModule::CheckInputSize2D	(	const char *	module_id,
		const char *	key,
		int	nrows,
		int	ncols,
		int &	m_nrows,
		int &	m_ncols
	)

virtual

Check data length of the two dimensions (i.e., nRows and nCols) of the input array-based data

参数

[in]	module_id	Module ID used to print exception message
[in]	key	the key to identify the requested data
[in]	nrows	size of the first dimension
[in]	ncols	size of the second dimension
[out]	m_nrows	the expected rows size, if m_nrows less or equal to 0, then m_nrows = mrows
[out]	m_ncols	the expected cols size, if m_ncols less or equal to 0, then m_ncols = ncols

◆ GetTimeStepType()

virtual TimeStepType SimulationModule::GetTimeStepType ( )

virtual

Get time step type, default is hillslope process.

   Remember to OVERRIDE this function to return other time step type for
   routing modules and others if necessary.

被 IKW_REACH, SEDR_SBAGNOLD, ImplicitKinematicWave_CH, ReservoirMethod, MUSK_CH, NutrCH_QUAL2E , 以及 NutrientinGroundwater 重载.

◆ InitialIntermediates()

virtual void SimulationModule::InitialIntermediates ( )

virtual

Initialize intermediate parameters for reducing computing amount.

   This function is optional to be overridden.
   Intermediate parameters only need to be calculated once
     and will not change during simulation.
   This function must be separated with InitialOutputs().

   For example, K*P*LS*11.8*exp(ROCK) in the equation of MUSLE can be
     considered as an intermediate parameter.

被 SERO_MUSLE , 以及 NutrientTransportSediment 重载.

◆ InitialOutputs()

virtual void SimulationModule::InitialOutputs ( void )

virtual

Initialize output variables.

   This function is optional to be overridden.
   Only allocate memory address and initialize outputs.

被 IKW_REACH, AET_PT_H, Biomass_EPIC, IUH_SED_OL, SEDR_SBAGNOLD, SERO_MUSLE, DiffusiveWave, DepressionFS, clsPI_MCS, StormGreenAmpt, DepressionFSDaily, ReservoirMethod, IUH_OL, MUSK_CH, PER_PI, PER_STR, PETHargreaves, PETPenmanMonteith, PETPriestleyTaylor, SET_LM, SNO_SP, SOL_WB, SoilTemperatureFINPL, SUR_MR, MGTOpt_SWAT, Nutrient_Transformation, NutrCH_QUAL2E, NutrientinGroundwater, NutrientMovementViaWater, NutrientTransportSediment , 以及 SNO_DD 重载.

枚举类型说明

◆ AggregationType

enum AggregationType

Aggregation type for OUTPUT

枚举值
AT_Unknown	unknown
AT_Sum	sum
AT_Average	average
AT_Minimum	minimum
AT_Maximum	maximum
AT_SpecificCells	specific cells

◆ dimensionTypes

enum dimensionTypes

enum of dimension data types

枚举值
DT_Unknown	Unknown type
DT_Single	Single floating point number
DT_SingleInt	Single integer
DT_Array1DDateValue	1D date array
DT_Array1D	1D floating point array, e.g., maximum temperature of sites
DT_Array1DInt	1D integer array
DT_Array2D	2D floating point array
DT_Array2DInt	2D integer array
DT_Raster1D	Raster data in floating point number, same as DT_Array1D
DT_Raster1DInt	Raster data in integer, same as DT_Array1DInt
DT_Raster2D	2D raster in floating point number, e.g., multi-layers of soil properties
DT_Raster2DInt	2D raster in integer, e.g., multiple flow direction
DT_Scenario	Scenario used by BMPs
DT_Reach	Reach parameters
DT_Subbasin	Subbasin instances

◆ TimeStepType

enum TimeStepType

Time step types.

枚举值
TIMESTEP_HILLSLOPE	Hillslope scale
TIMESTEP_CHANNEL	Channel scale
TIMESTEP_SIMULATION	Whole simulation scale

◆ transferTypes

enum transferTypes

Float values be transferred across subbasins for MPI version

枚举值
TF_None	Default, which means no need to be transferred
TF_SingleValue	A single value in the data (e.g., DT_Array1D)
TF_OneArray1D	A piece of 1D array in the data (e.g., DT_Array2D)

类

枚举

详细描述

类说明

◆ PrintInfoItem

Public 成员函数

静态 Public 成员函数

Public 属性

成员函数说明

◆ AggregateData()

类成员变量说明

◆ SiteID

◆ PrintInfo

Public 成员函数

Public 属性

◆ InputArgs

Public 成员函数

静态 Public 成员函数

Public 属性

构造及析构函数说明

◆ InputArgs()

成员函数说明

◆ Init()

◆ ModelClass

◆ Information

Public 属性

◆ baseParameter

Public 属性

◆ Parameter

Public 属性

◆ InputVariable

额外继承的成员函数

◆ OutputVariable

额外继承的成员函数

◆ InOutputVariable

额外继承的成员函数

◆ MetadataInfo

◆ ModuleFactory

Public 成员函数

静态 Public 成员函数

Public 属性

成员函数说明

◆ LoadParseLibrary()

◆ ReadConfigFile()

◆ SimulationModule

Public 成员函数

Protected 属性

成员函数说明

◆ CheckInputData()

◆ CheckInputSize()

◆ CheckInputSize2D()

◆ GetTimeStepType()

◆ InitialIntermediates()

◆ InitialOutputs()

枚举类型说明

◆ AggregationType

◆ dimensionTypes

◆ TimeStepType

◆ transferTypes
